power supply
Input voltage: 100~240VAC, 50/60Hz
Rated power: 300W@220V
optics
Light source: 200W LED
Rated life: 20000 hours

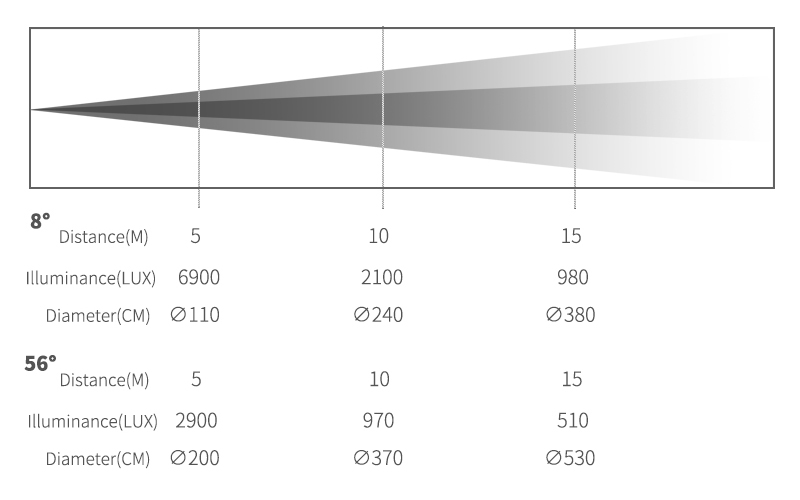

Illumination: 6900LX at a distance of 5 meters
Beam angle: 8°～56°

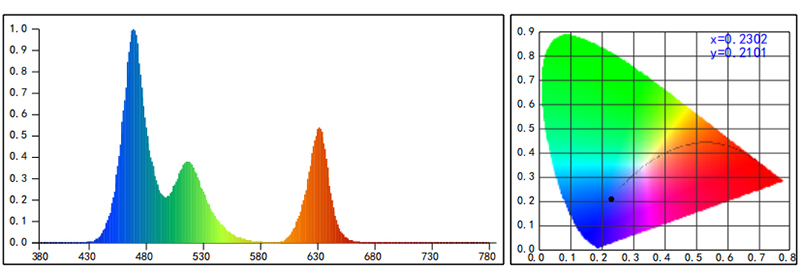

Color temperature: 7000K
Effect
Rotation angle: horizontal 540° vertical 270°; with automatic return function, horizontal/vertical speed adjustable

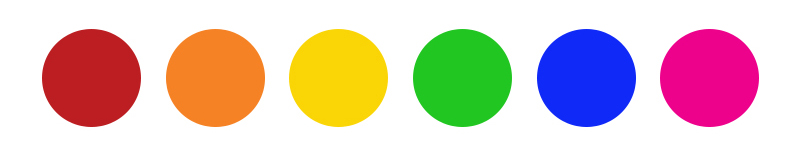

Color: 1 color wheel (6 colors + white light), half-color effect, variable speed two-way rainbow effect, step/linear color conversion

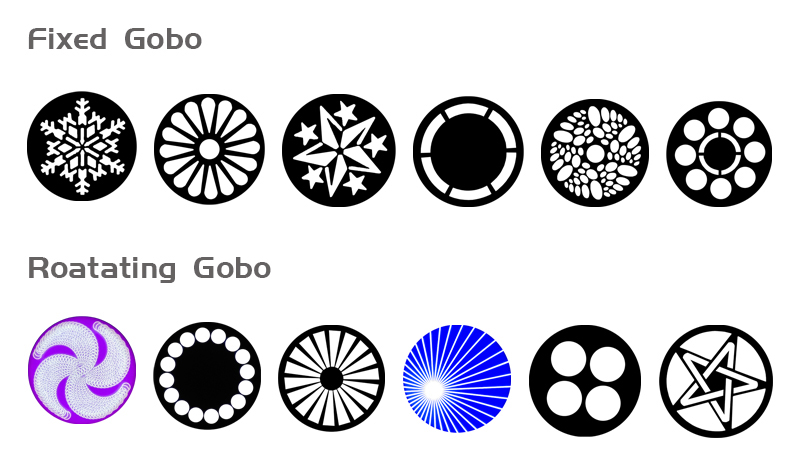

Gobo: 1 fixed gobo wheel (6 gobos + white light), two-way variable speed flow effect, 1 effect gobo wheel (6 gobos + white light), two-way variable speed rotation, variable speed shaking effect, two-way variable speed flow effect
Prism: 1 quadrangular prism, which can be rotated in two directions with variable speed, and has an index function
Atomization: 0~100% linear adjustment
Focus: DMX linear adjustment
Strobe: 0~25HZ
Dimming: 0-100% linear adjustment
control
Control mode: DMX512, RDM control protocol, network control protocol
Channel: 16CH
physical properties
Protection class: IP20
Shell: high temperature resistant engineering plastics, black
Power connection: powerCON power input/output
Signal connection: three-core DMX signal input/output
Product net weight: 15.1kg
Working environment: -2℃~40℃

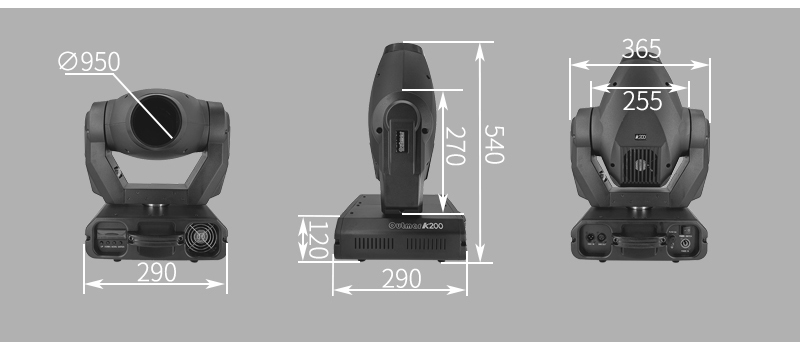

Lamp size: 340x320x510mm
Packing size: 450x480x550mm

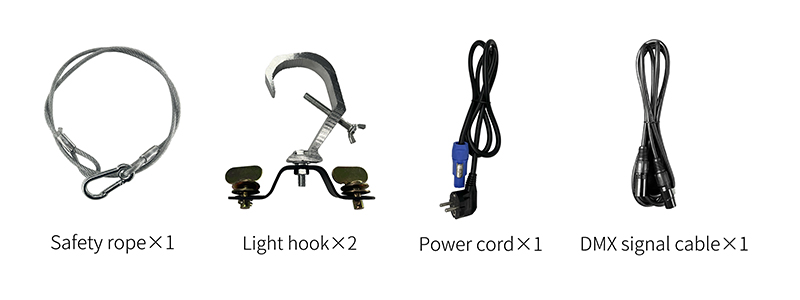

Standard configuration: Power cord 1PCS, safety rope 1PCS, light hook 2PCS, DMX signal line 1PCS
