power supply
Input voltage: 100~240VAC, 50/60Hz
Rated power: 280W@220V
Rated life: 50000 hours
Color rendering index: RA≥80
Strobe: 0~30HZ
Dimming: 0-100% linear adjustment (can individually control the brightness of each lamp bead)
Channel: 7CH/10CH/35CH/95CH
physical properties
Protection class: IP20
Shell: high temperature resistant engineering plastic + die-casting aluminum, black (customizable color)
Power connection: powerCON power input/output
Signal connection: three-core DMX signal input/output
Product net weight: 4.3kg
Working environment: -20℃~40℃

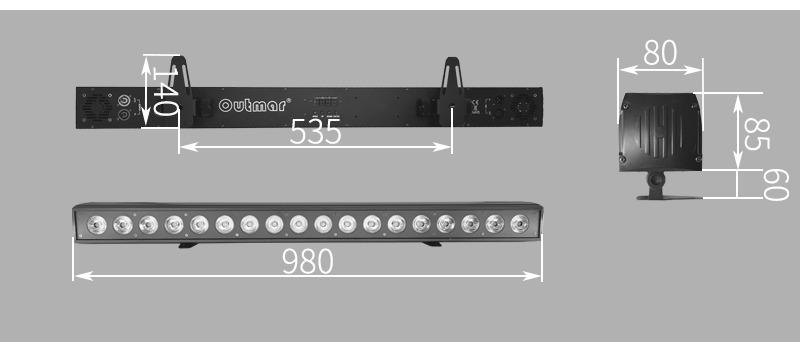

Lamp size: 980x80x145mm
Input voltage: 100~240VAC, 50/60Hz
Rated power: 280W@220V
optics
Light source: 18×15W RGBW LEDRated life: 50000 hours
Color rendering index: RA≥80
Effect
Vertical scan: manual rotation 180°Strobe: 0~30HZ
Dimming: 0-100% linear adjustment (can individually control the brightness of each lamp bead)
control
Control method: DMX512, master-slave synchronous control mode, built-in programs and user programs can be directly called by the control channelChannel: 7CH/10CH/35CH/95CH
physical properties
Protection class: IP20
Shell: high temperature resistant engineering plastic + die-casting aluminum, black (customizable color)
Power connection: powerCON power input/output
Signal connection: three-core DMX signal input/output
Product net weight: 4.3kg
Working environment: -20℃~40℃
Lamp size: 980x80x145mm
Packing size: 1070x120x150mm Standard configuration: Power cord 1PCS, DMX signal line 1PCS
