Power

AC power                           100-240 V AC,  50/60 Hz
Rated power                     1200W@220V

Optics

Lamp                                   800W LED
Rated life                           20000h

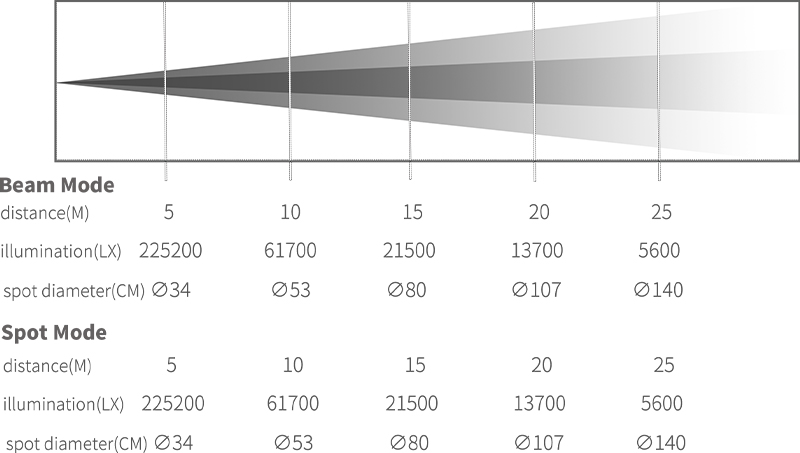

Beam angle                      4°~40°

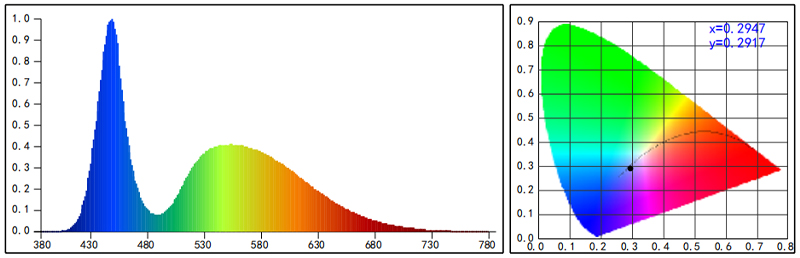

CRI                                       70, remotely selectable
filter for CRI 90

Horizontal scanning      540°
Vertical scanning             270°
Shutter                               0~25HZ
Dimming                            0-100%  coarse and fine control

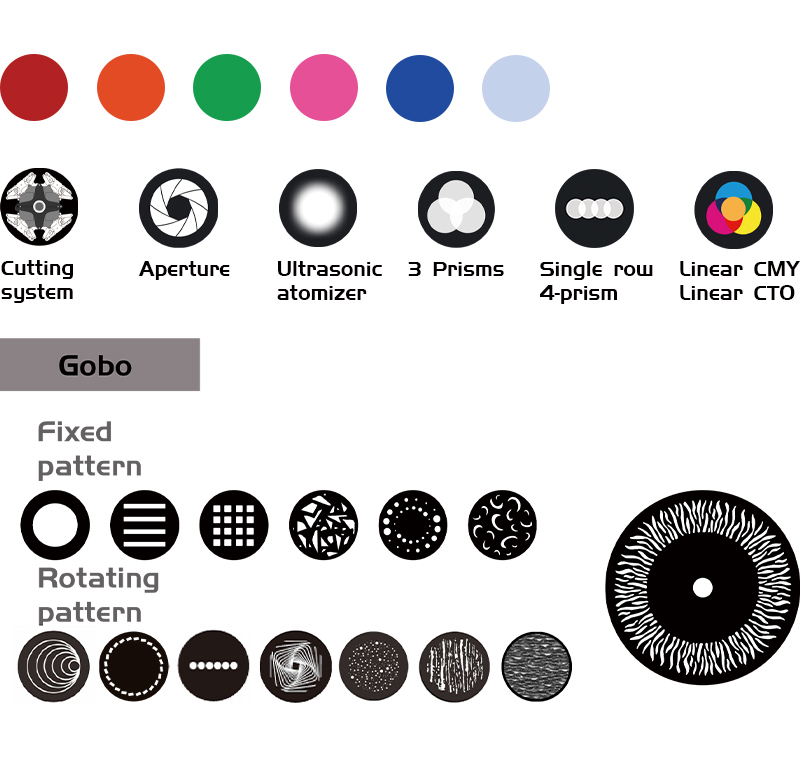

Color                                       6colors + white light,
1 flowing water pattern
Linear CMY color mixing
Linear CTO Color Correction
Fixed pattern                     6 fixed patterns +running pattern
+ white light
Rotation pattern              7 glass patterns, each glass pattern
can be independent positive and
negative rotation
Prism system                     3 Prism+Single Four Row Prism
Horizontal scanning      540°
Vertical scanning             270°
Shutter                               0~25HZ
Dimming                            0-100%  coarse and fine control
Color                                       6colors + white light,
1 flowing water pattern
Linear CMY color mixing
Linear CTO Color Correction
Fixed pattern                     6 fixed patterns +running pattern
+ white light
Rotation pattern              7 glass patterns, each glass pattern
can be independent positive and
negative rotation
Prism system                     3 Prism+Single Four Row Prism

Control

Control and Programming
DMX512，With RDM function, Art Net Protocol,
software can be upgraded online,
dial the address code
DMXchannels      35CH

Physical characteristics

Protection rating       IP65
Housing                             high temperature resistant flame
retardant plastic
AC power in/thru             Seetronic PowerCon
DMX data in/out              3/5-pin  locking XLR
Weight                                 35kg
Ambient temperature         -20℃~40℃

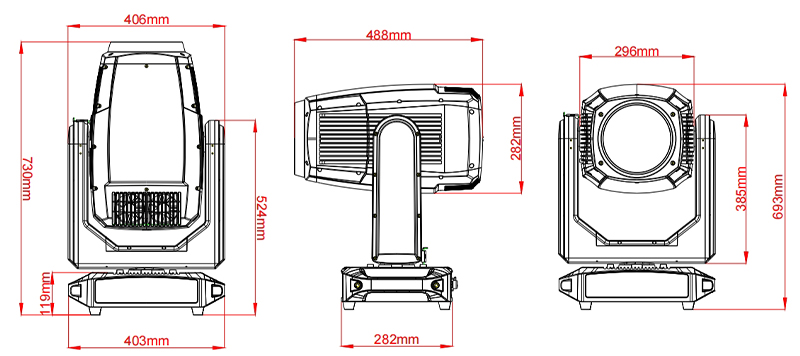

Lamp size                          402x282x730mm
